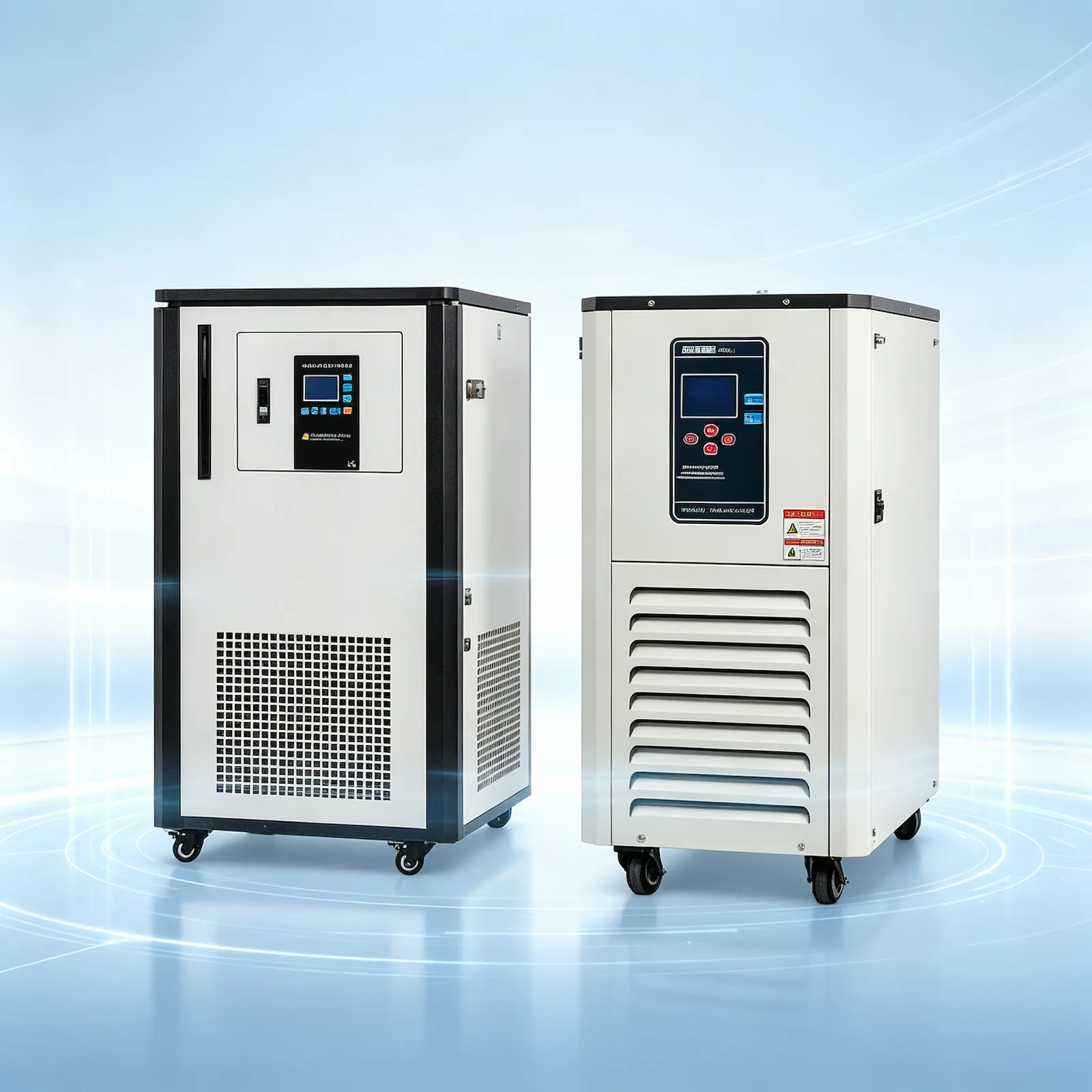

Heating & Cooling Circulator (All-in-One)
One GDX unit does both heating and cooling: covering -20/-40/-80°C to 200°C with a fully sealed fluid circuit — no oil smoke at high temperature, no moisture absorption at low temperature. The ideal partner for precise temperature control of jacketed glass and stainless steel reactors.
Technical Specifications
| Parameter | GDX-20/40 | GDX-50/40 | GDX-50/80 | GDX-100/40 |
|---|---|---|---|---|
| Temperature Range | -40~200°C | -40~200°C | -80~200°C | -40~200°C |
| Heating Power | 3 kW | 5 kW | 5 kW | 9 kW |
| Max Flow | 40 L/min | 42 L/min | 50 L/min | 42 L/min |
| Max Head | 6 m | 28 m | 12 m | 28 m |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Matched Reactor | Lab jacketed reactors | Pilot jacketed reactors | Pilot jacketed reactors | Large jacketed reactors |
Fully sealed circulation system: no oil mist at high temp, no water absorption at low temp, auto medium replenishment. Compressor: Tecumseh. Expansion valve: Danfoss. Evaporator: plate heat exchanger. Control: LCD, touch buttons, set/measured temp display, self-diagnosis. Housing: SUS304 stainless steel. Port: DN20 PN10. Power: 380V/50Hz. / Full range GDX-10 to GDX-100 with -20/-40/-80°C options. Explosion-proof versions available. Cooling capacity varies by temperature point (data at 200/20/0/-20/-40/-60/-80°C available on request).
Product Views & System Configurations
Typical Applications
- Full-range temperature control for jacketed reactors
- Exothermic / endothermic reaction control
- Material testing under temperature cycles
- Pilot plant process temperature management
FAQ
- One unit for both heating and cooling?Yes — it heats and cools automatically along your set curve, no switching equipment.
- Advantage over separate chiller + oil bath?Faster response, programmable ramps, fully sealed system, smaller footprint.
- Can you customize the range?Yes, -80°C to 200°C versions available.
- Explosion-proof version?Yes, EX-rated high-low temp circulators are available.
